Thermal Shock Chamber Damper Type

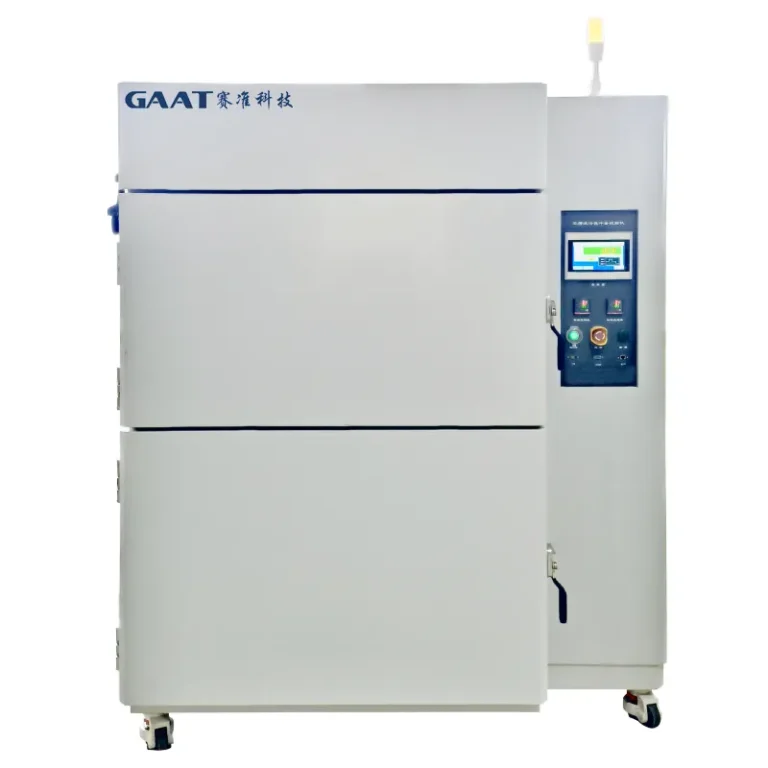

Thermal Shock Test Chamber (Damper Type) – Fixed Test Area is designed with three distinct sections: the Test Zone, Pre-heat Storage Zone, and Pre-cool Storage Zone. In this setup, the specimen is placed in the Test Zone, where it is subjected to rapid temperature shock without moving physically. These temp changes are achieved by the circulation of hot and cold air from the respective pre-heat storage and pre-cool storage zones via damper valve controls, simulating thermal shock conditions effectively.

Thermal Shock Test Chamber Details>>>

Application of Thermal Shock Test Chamber:

  1. Electronics: Testing component reliability.

2. Automotive: Assessing part performance.

3. Aerospace: Simulating environmental extremes.

4. Materials: Evaluating material durability.

5. Telecom: Ensuring equipment stability.

Features:

  • Thermal shock without moving test specimen
  • Quick temperature recovery
  • Uniform temperature distribution
  • Automatic setting of pre-heating and pre-cooling in energy saving mode

Applicable Testing Standards:

IEC 60068-2-1: 2007, IEC 60068-2-2: 2007, IEC 60068-2-14: 2009, EIAJ ED-2531B: 2004, JASO D 014-4: 2014, MIL-STD-883H: 2010, MIL-STD-202G: 2002, GB/T 2423.1: 2008, GB/T 2423.2: 2008, GB/T 2423.22: 2012, GB/T 2424.13: 2002, GJB 360B: 2009, GJB 150.5A: 2009.

Specification:

Model (Elevator Type – 2 zone)SZ-I-42(A～C)、SZ-I-80(A～C)、SZ-I-150(A～C)、SZ-I-300(A～C)、SZ-I-512(A～C)
Inner Dimension WxHxD (mm)400x350x300、500x400x400、 600x500x500、 800x560x610、 800x800x800
Temperature Exposure RangeHigh temperature shock range: +60℃~+150℃;
Low temperature shock range: 0℃~-65℃ (A: -45℃; B: -55℃; C: -65℃)
High Temperature ZoneHeating: RT→+200℃≤40min.
Low Temperature ZoneCooling: RT→-75℃≤70min.
Temperature PerformanceTemperature recovery time in test zone ≤ 3 or 5 min
Temperature fluctuation: ≤±1℃
Temperature deviation: ≤±2℃
Safety featurescompressor over-heat, over-current, over-pressure protection, condensation fan over-heat protection, chamber over-temp protection, fan motor over-heat, over-load protection, heater over temperature protection, short circuit protection, power phase sequence phase loss protection, earth leakage protection, circuit overload and short-circuit protection

Specification:

Model (Elevator Type – 2 zone)SZ-I-42(A～C)SZ-I-80(A～C)SZ-I-150(A～C)SZ-I-300(A～C)SZ-I-512(A～C)
Inner Dimension WxHxD (mm)400x350x300500x400x400600x500x500800x560x610800x800x800
Temperature Exposure RangeHigh temperature shock range: +60℃~+150℃;
Low temperature shock range: 0℃~-65℃ (A: -45℃; B: -55℃; C: -65℃)
High Temperature ZoneHeating: RT→+200℃≤40min.
Low Temperature ZoneCooling: RT→-75℃≤70min.
Temperature PerformanceTemperature recovery time in test zone ≤ 3 or 5 min
Temperature fluctuation: ≤±1℃

Temperature deviation: ≤±2℃
Safety featurescompressor over-heat, over-current, over-pressure protection, condensation fan over-heat protection, chamber over-temp protection, fan motor over-heat, over-load protection, heater over temperature protection, short circuit protection, power phase sequence phase loss protection, earth leakage protection, circuit overload and short-circuit protection
