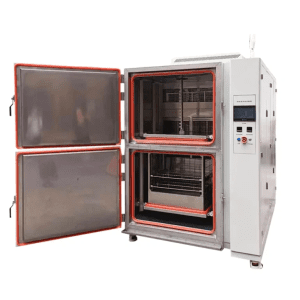

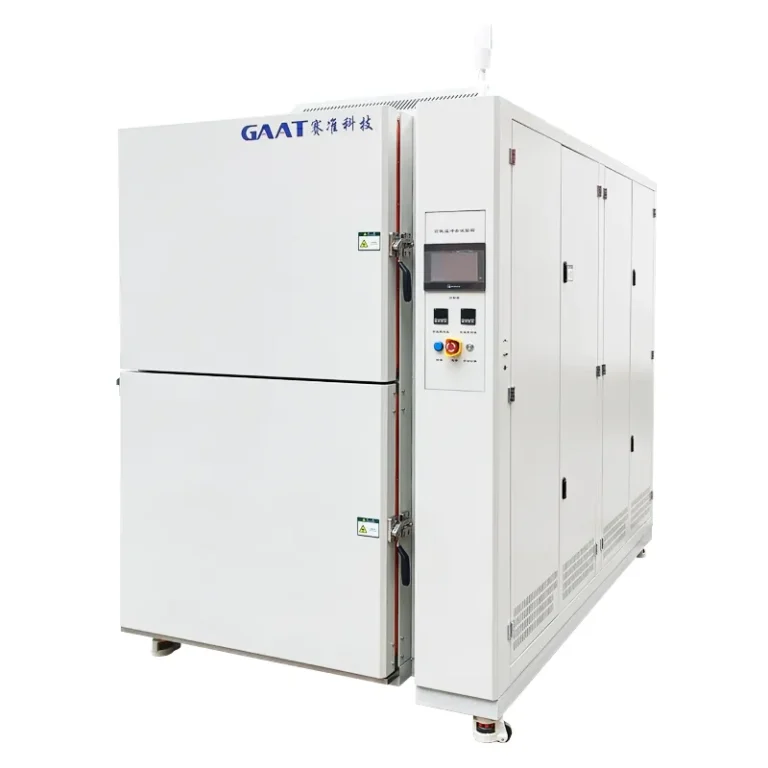

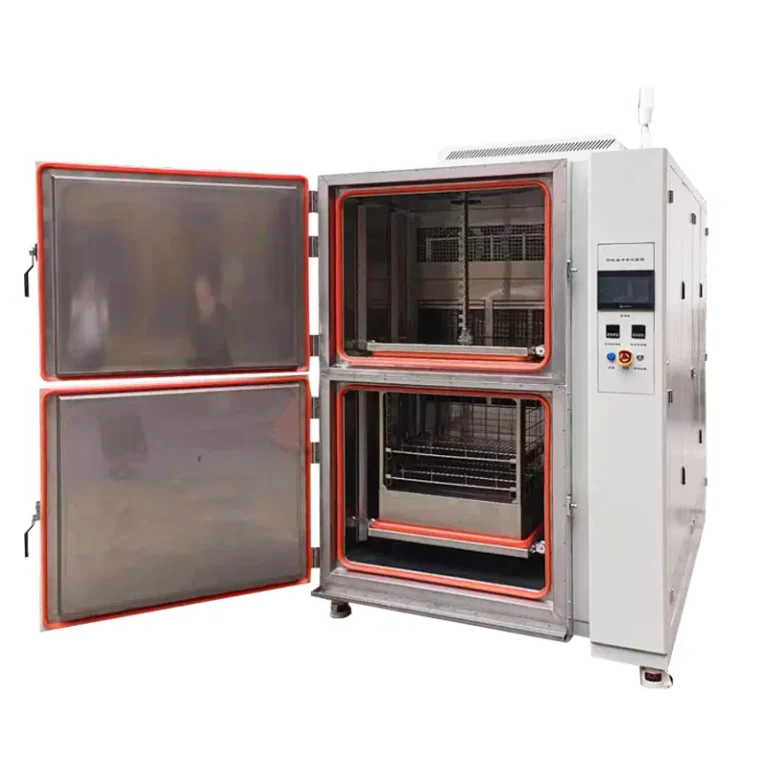

Application of Thermal Shock Chamber:

Electronics: Testing component reliability.

2. Automotive: Assessing part performance.

3. Aerospace: Simulating environmental extremes.

4. Materials: Evaluating material durability.

5. Telecom: Ensuring equipment stability.

Features of Thermal Shock Chamber:

Smooth and safe specimen transfer
Transfer time within in 10 seconds
Short temperature recovery time
Uniform temperature distribution
Automatic setting of pre-heating and pre-cooling in energy saving mode

Applicable Testing Standards:

IEC 60068-2-1: 2007, IEC 60068-2-2: 2007, IEC 60068-2-14: 2009, EIAJ ED-2531B: 2004, JASO D 014-4: 2014, MIL-STD-883H: 2010, MIL-STD-202G: 2002, GB/T 2423.1: 2008, GB/T 2423.2: 2008, GB/T 2423.22: 2012, GB/T 2424.13: 2002, GJB 360B: 2009, GJB 150.5A: 2009..

Specification:

Model (Elevator Type – 2 zone)	SZ-H-42(A～C)、SZ-H-80(A～C)、SZ-H-150(A～C)、SZ-H-300(A～C)、SZ-H-512(A～C)、SZ-H-1000(A～C)
Inner Dimension WxHxD (mm)	400x350x300、500x400x400、600x500x500、800x560x610、800x800x800、1000x1000x1000
Basket movement direction	Vertical (up – down)、Horizontal (left – right)
Temperature Exposure Range	High temperature shock range: +60℃~+150℃; Low temperature shock range: 0℃~-65℃ (A: -45℃; B: -55℃; C: -65℃)
High Temperature Zone	Heating: RT→+200℃≤40min.
Low Temperature Zone	Cooling: RT→-75℃≤70min.
Temperature Performance	Temperature recovery time in test zone ≤ 3 or 5 min Basket change-over time ≤10s Temperature fluctuation: ≤±1℃ Temperature deviation: ≤±2℃
Safety features	compressor over-heat, over-current, over-pressure protection, condensation fan over-heat protection, chamber over-temp protection, fan motor over-heat, over-load protection, heater over temperature protection, short circuit protection, power phase sequence phase loss protection, earth leakage protection, circuit overload and short-circuit protection

Specification:

Model (Elevator Type – 2 zone)	SZ-H-42(A～C)	SZ-H-80(A～C)	SZ-H-150(A～C)	SZ-H-300(A～C)	SZ-H-512(A～C)	SZ-H-1000(A～C)
Inner Dimension WxHxD (mm)	400x350x300	500x400x400	600x500x500	800x560x610	800x800x800	1000x1000x1000
Basket movement direction	Vertical (up – down)				Horizontal (left – right)
Temperature Exposure Range	High temperature shock range: +60℃~+150℃; Low temperature shock range: 0℃~-65℃ (A: -45℃; B: -55℃; C: -65℃)
High Temperature Zone	Heating: RT→+200℃≤40min.
Low Temperature Zone	Cooling: RT→-75℃≤70min.
Temperature Performance	Temperature recovery time in test zone ≤ 3 or 5 min Basket change-over time ≤10s Temperature fluctuation: ≤±1℃ Temperature deviation: ≤±2℃
Safety features	compressor over-heat, over-current, over-pressure protection, condensation fan over-heat protection, chamber over-temp protection, fan motor over-heat, over-load protection, heater over temperature protection, short circuit protection, power phase sequence phase loss protection, earth leakage protection, circuit overload and short-circuit protection
