Highly Accelerated Stress Test Chamber

Application of HAST Chamber:

1. Electronics Testing: HAST chamber validates the durability of electronic components and circuits against moisture and temperature variations.

2. Material Science: Assesses the resilience of various materials to environmental stressors.

3. Quality Assurance: Ensures products meet stringent quality standards before market release.

4. Automotive Industry: Tests the reliability of automotive electronics under extreme conditions.

5. Aerospace: Evaluates the performance of materials and components in simulated high-altitude environments.

Features:

• Advanced Double-Container System Design
• Comprehensive Test Standards Compliance
• Flexible Temperature and Humidity Range
• CEPREI Calibration and Certification

Testing Standards:

IEC 60068-2-66: 1994, IEC 60749-4: 2017, EIAJ ED-4701/100A: 2016, JESD22-A110E: 2021, AEC-Q100-Rev-H: 2014, JPCA-ET08: 2007.

Technical Parameters：

Model	SZ-HAST-42
Inner size	420×500 (mm) (Dia×Depth)
External size	700×1600×885 (mm) W×H×D

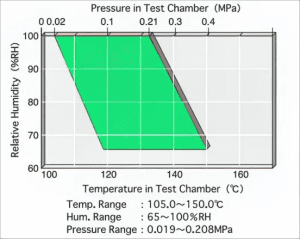

Temperature humidity and pressure range	Temperature range: 105℃～150℃ Humidity range: 65%～100%RH Pressure range: 0.019～0.208 Mpa The range chart of temperature, humidity and pressure below:
Testing temperatures	105.0～133.3℃/100%RH 110.0～140.0℃/85%RH 118.0～150.0℃/65%RH
Control accuracy	Temperature resolution: 0.01℃ Temperature deviation: ±1.0℃ Temperature fluctuation: ±0.5℃ Pressure uniformity: ±0.1kg Humidity uniformity: <=±3%R.H
Heating rate	RT ~ +120℃ ＜80min

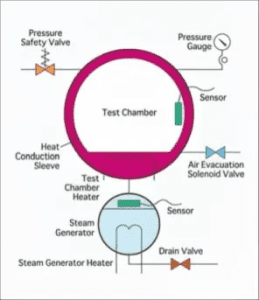

Structural highlight	This HAST chamber adopts double-container structural design, the test chamber and the steam generator chamber are independent from each other. Compared to a single-container structural design, our machine can provide a more stable and accurate testing environment, allow wider humidity range and prevent the dewing problem.
Bias terminals	20 bias terminals are equipped as standard, can be increased to 100 terminals or more as per individual customer needs
Safety features	Forced lock during high pressure condition, automatic pressure relief under over-pressure condition, heater dry burn protection, water supply abnormal alarm, water drainage abnormal alarm and water shortage protection, humidifier dry burn protection, water supply abnormality alarm, earth leakage protection, overload protection, short-circuit protection

Technical Parameters

Model	SZ-HAST-42
Inner size	420×500 (mm) (Dia×Depth)
External size	700×1600×885 (mm) W×H×D
Temperature humidity and pressure range	Temperature range: 105℃～150℃ Humidity range: 65%～100%RH Pressure range: 0.019～0.208 Mpa The range chart of temperature, humidity and pressure below:
Testing temperatures	105.0～133.3℃/100%RH 110.0～140.0℃/85%RH 118.0～150.0℃/65%RH
Control accuracy	Temperature resolution: 0.01℃ Temperature deviation: ±1.0℃ Temperature fluctuation: ±0.5℃ Pressure uniformity: ±0.1kg Humidity uniformity: <=±3%R.H
Heating rate	RT ~ +120℃ ＜80min
Structural highlight	This HAST chamber adopts double-container structural design, the test chamber and the steam generator chamber are independent from each other. Compared to a single-container structural design, our machine can provide a more stable and accurate testing environment, allow wider humidity range and prevent the dewing problem.
Bias terminals	20 bias terminals are equipped as standard, can be increased to 100 terminals or more as per individual customer needs
Safety features	Forced lock during high pressure condition, automatic pressure relief under over-pressure condition, heater dry burn protection, water supply abnormal alarm, water drainage abnormal alarm and water shortage protection, humidifier dry burn protection, water supply abnormality alarm, earth leakage protection, overload protection, short-circuit protection
