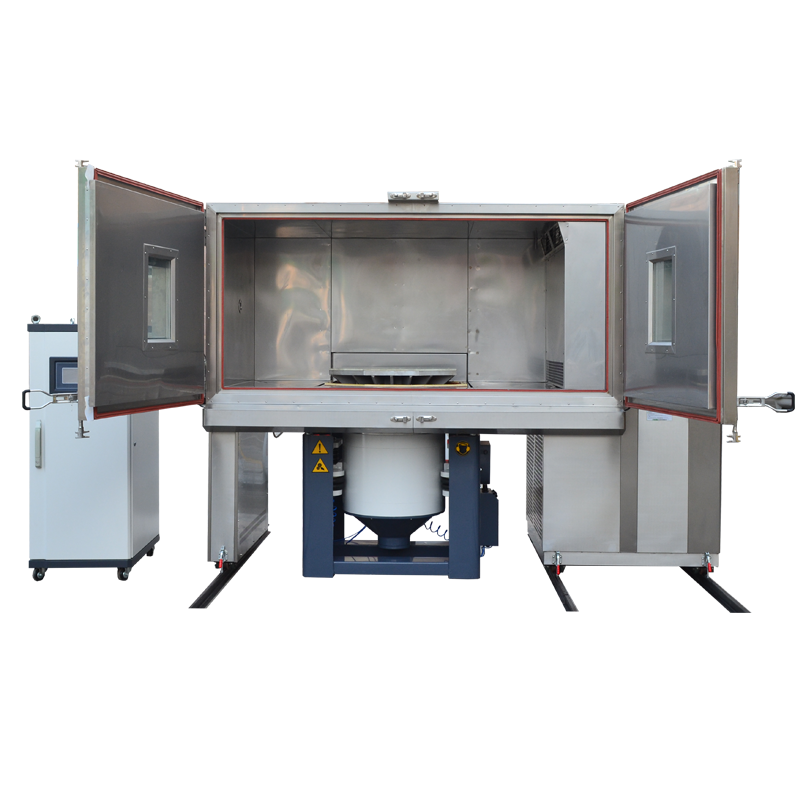

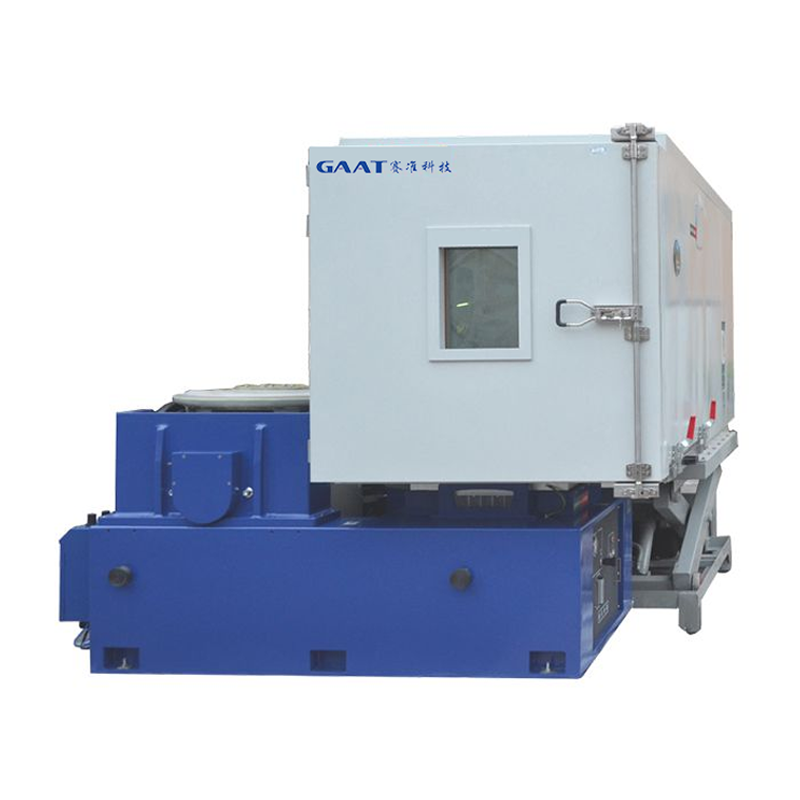

Agree Chamber

Application of Agree Chamber:

Agree Chamber is applied to environmental adaptability of aerospace, marine, automotive and other electronic products.

Features:

Vertical + horizontal vibration table, wider test range;
Independent console to make it convenient for operation;
Can combine with Dongling, Labtone, CVMS, IMV, vibration shaker system;
500+ projects and rich experience.

Applicable Testing Standards:

GB/2423.10-1995 Sine Vibration test method

GB/2433.1-1999 Low temperature testing method

GB10589 Damp/hot testing conditions

GB2323.2-1989 High temperature testing method

GB/T2423.4-1993 Damp/Hot alternativetesting method

GB/10592 High/Low Temperature/Humidity Testing Condition

Technical Parameters

Model	SZ-V-225(C/D/G)、SZ-V-608(C/D/G)、SZ-V-1000(C/D/G)、SZ-V-2000(C/D/G)
Inner Size WxHxD (mm)	500x750x600 (225L)、800x950x800 (608L)、1000x1000x1000 (1000L)、2000x1000x1000 (2000L)
Exterior Size WxHxD (mm)	700×1800×1900、 1000×2000×2400、1200×2000×2600、2200×2000×2600
	*exterior dimensions are subject to final design to interface with shaker system on project basis
Temperature Range	-70℃～+100/+150℃ (C:-20℃ D:-40℃ G:-70℃)
Humidity Range	10%～98%RH (*applicable with humidity chamber models only)
Temperature / Humidity Fluctuation	±0.5℃; ±2.0%RH
Temperature / Humidity Deviation	±2℃ ≤±3.0%RH (>75%RH); ≤±5.0%RH (≤75%RH)
Heating/Cooling Rate	Heating rate ≥5℃/min Cooling rate ≥2℃/min *We also make fast rate temperature chambers with heating/cooling rate ≥10℃/min, 15℃/min as per specific testing requirement.

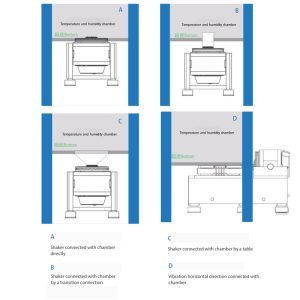

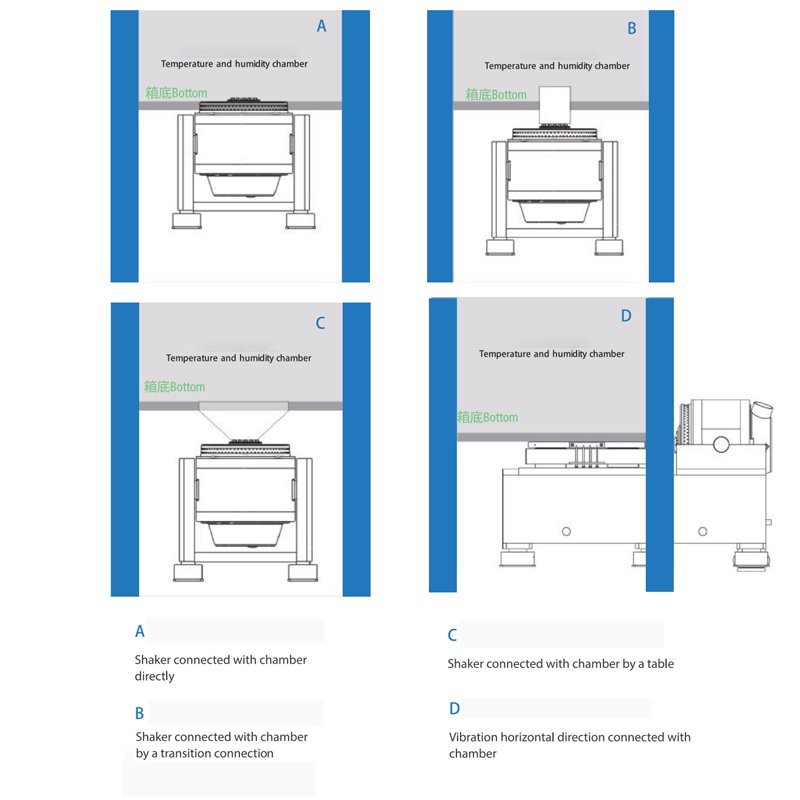

Easy interface design	Customized design on project basis to ensure the chamber can be easily interfaced with many various types of shakers for vertical, horizontal and tri-axial vibrations.
Removable floors and blind floor	Equipped with different removable floors with thermal barriers, for vertical and horizontal vibrations, can adapt the chamber to any existing standard shakers. If there is the need to use the chamber without the shaker in place, a blind floor is available.
Optional auxiliaries	Pressure release vent Gas detector. Forced ventilation system. CO2 extinguisher. Safety lock mechanism.
Safety protection features	Over temperature protection, auto pressure balancing protection, compressor overheat/over current/over pressure protection, condensation fan overheat protection, fan motor overload, short circuit protection, fan reverse protection, heater over temperature protection, short circuit protection, dry burn, water shortage protection (humidity chamber models only), earth leakage protection, overload protection, short-circuit protection, phase sequence protection.
